| Material Description | Nylon 6.6 () |

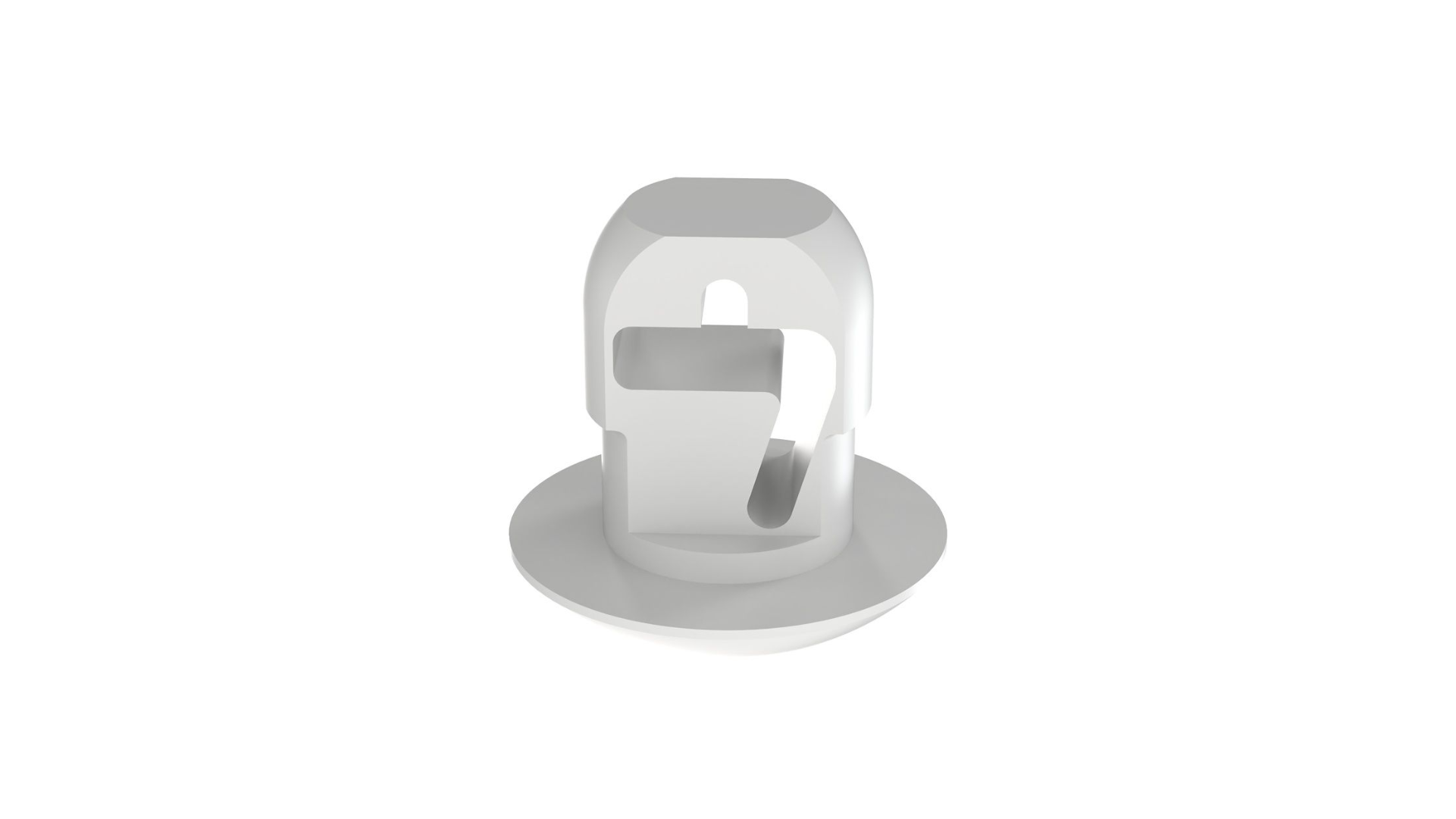

| Product Type | Cable Tie Mount |
| Application | Push Button Mounts for Use where Both Sides of the Panel are Accessible |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.42 |
| Overall Length (mm) | 10.7 |
| Overall Width (In.) | 0.42 |
| Overall Width (mm) | 10.7 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
