| Note | Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266) |

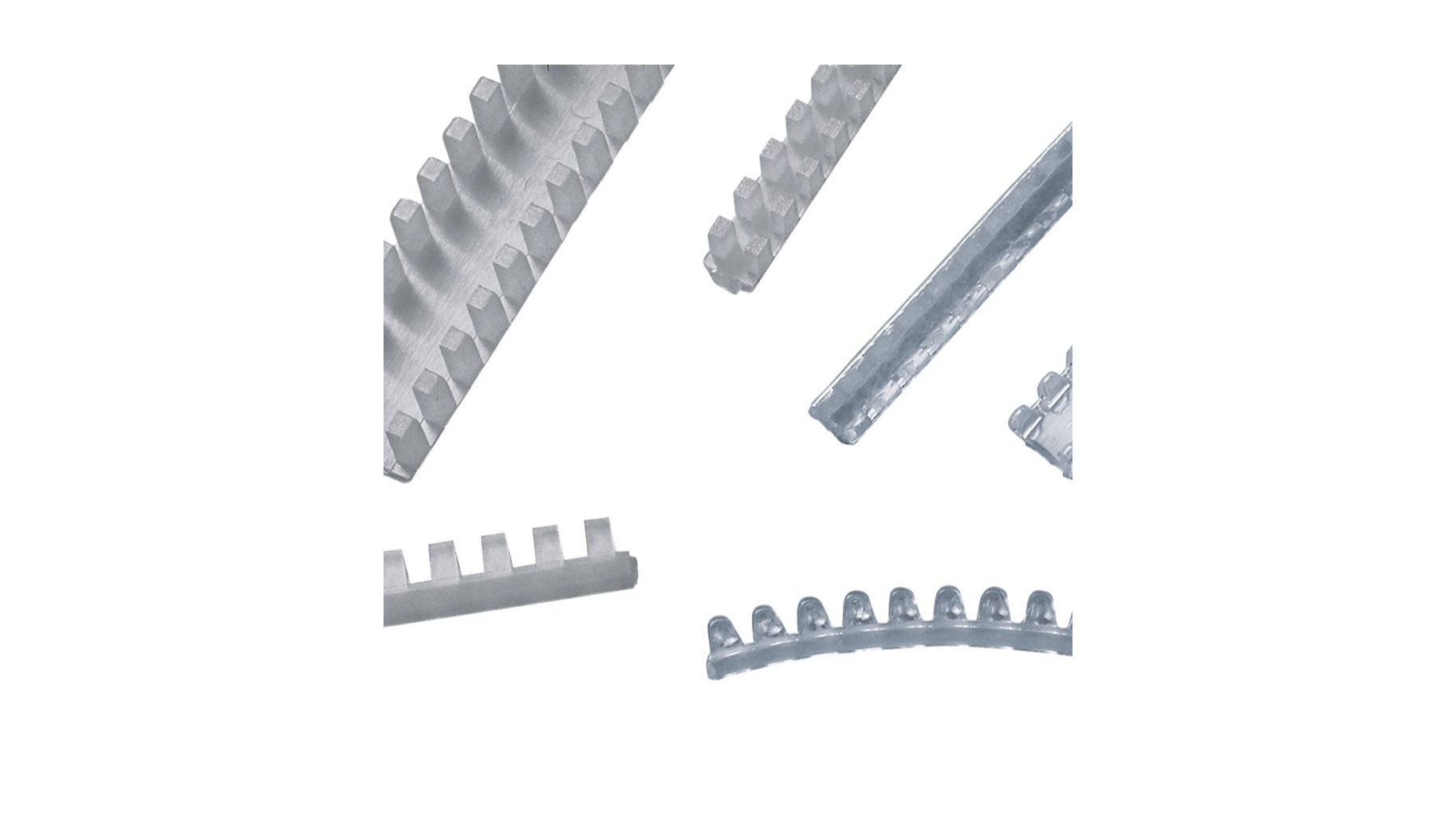

| Product Type | Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.085 |
| Maximum Compatible Panel Thickness (mm) | 2.2 |
| Minimum Compatible Panel Thickness (In.) | 0.052 |
| Minimum Compatible Panel Thickness (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (ft.) | 1.06 |
| Overall Length (m) | 0.3 |
| Overall Width (In.) | 0.18 |
| Overall Width (mm) | 4.5 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 3.9 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
Part Features
| | Provides protection for cables being installed where there might be sharp edges on straight edges |
|
