| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |

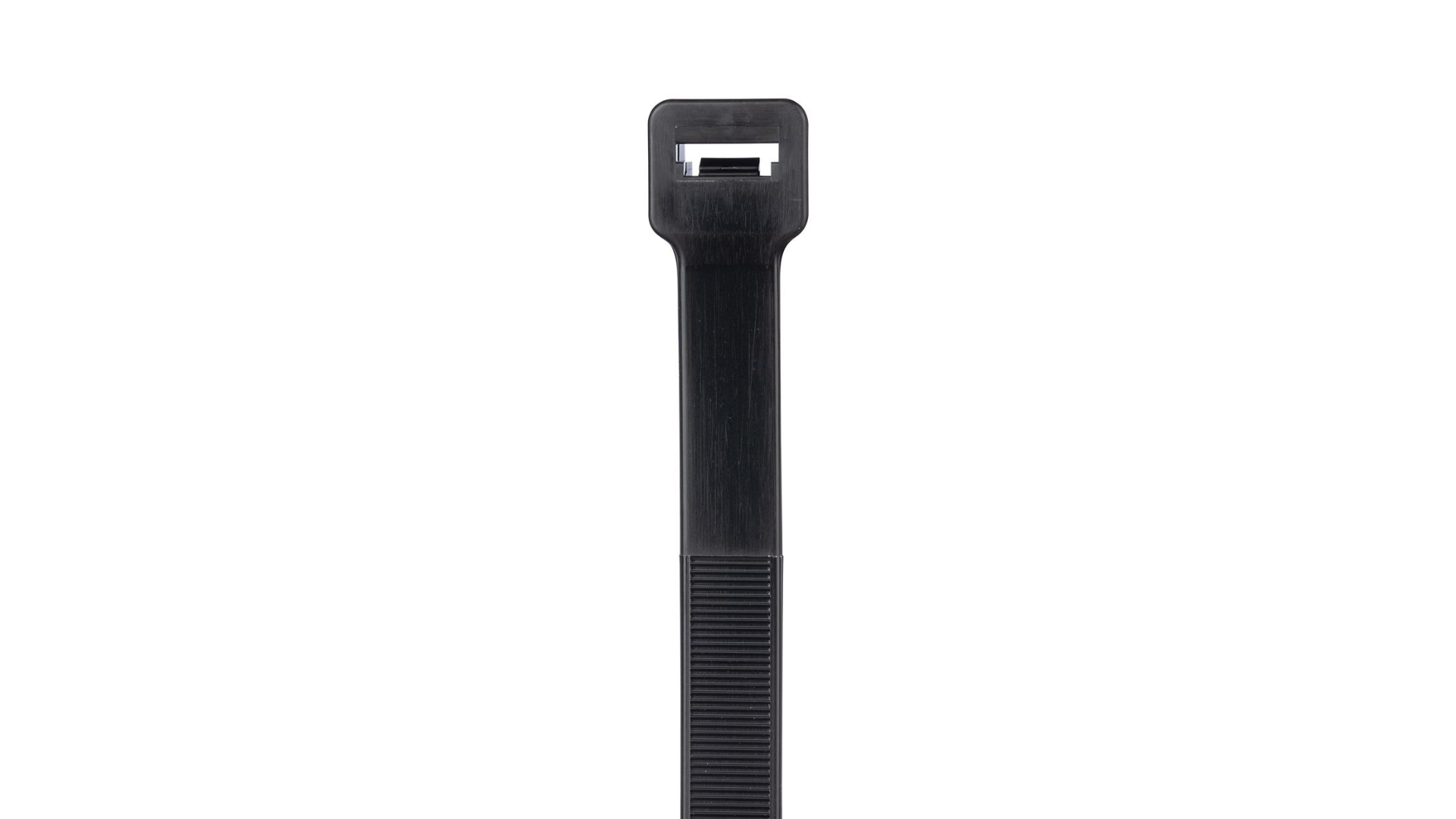

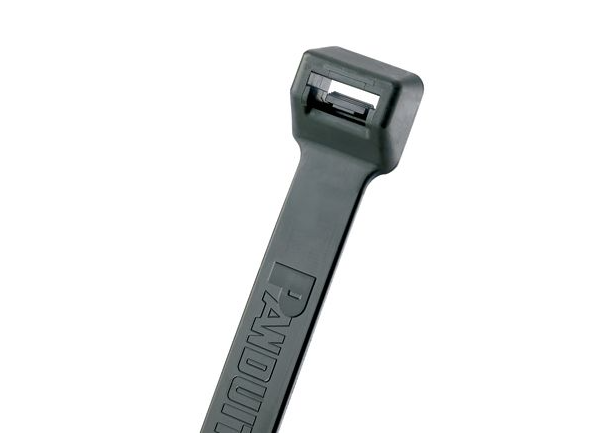

| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 19.8 |
| Overall Length (mm) | 503 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Compliant |
| For Use With | GS4EH-E, ST3EH |
| Part Features | One piece construction provides consistent, reliable performance. Low thread force. Used for heavy duty applications. |
