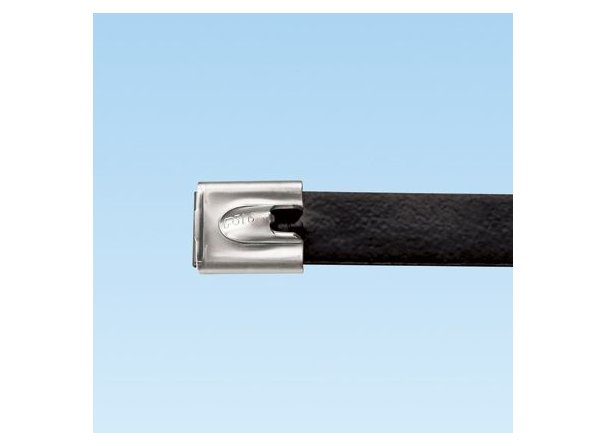

| Product Type | Cable Tie |
| Sub Brand | Pan-Steel® |
| Color | Black |
| Environment | Harsh |
| Material | Stainless Steel Type 316 |
| Finish/Coating | Polyester Fully-Coated |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 29.7 |
| Overall Length (mm) | 754 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.017 |
| Body Thickness (mm) | 0.43 |
| Maximum Bundle Diameter (In.) | 8 |
| Maximum Bundle Diameter (mm) | 203.2 |
| Minimum Bundle Diameter (In.) | 1 |
| Minimum Bundle Diameter (mm) | 25.4 |
| Minimum Loop Tensile Strength (N) | 1335 |
| Minimum Loop Tensile Strength (lb) | 300 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | CE,ABS,UL |
| For Use With | PBTMT & RT2HT |
| Application | Corrosive Environment |
