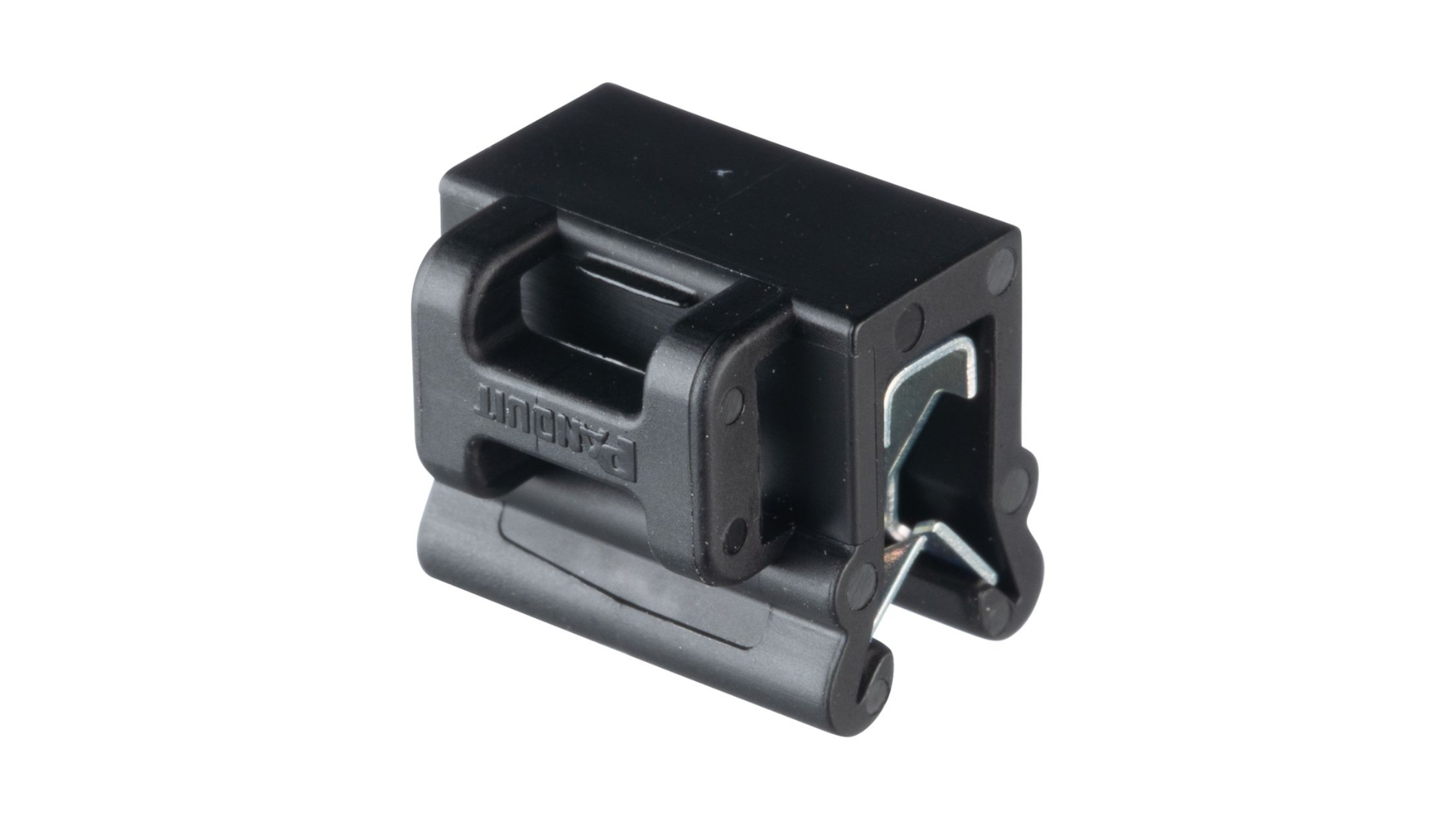

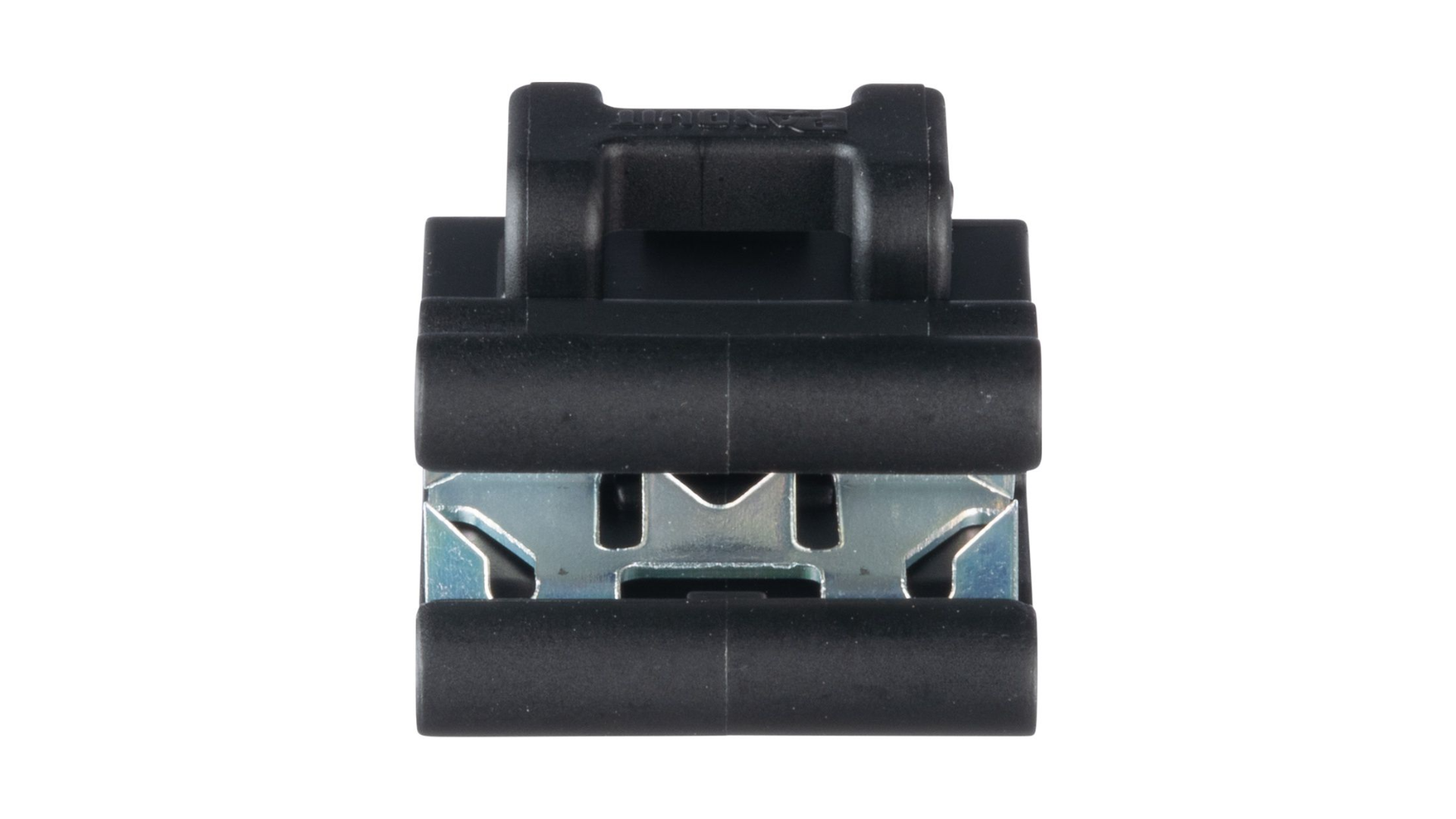

| Product Type | Edge Clip Mount |
| Application | For securing wire and cable bundles with versatile mounting to edges. Ideal for automobiles, trains, heavy equipment, trucks, and solar applications. |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Compatible Panel Thickness (In.) | 0.12 |
| Maximum Compatible Panel Thickness (mm) | 3 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Mount Method | Edge Clip |
| Overall Length (In.) | 0.55 |
| Overall Length (mm) | 14 |
| Overall Width (In.) | 0.47 |
| Overall Width (mm) | 11.9 |
| Overall Height (In.) | 0.48 |
| Overall Height (mm) | 12.2 |
| Resistance Properties | UV-Resistant |
| Standards Met | RoHS Compliant |
| Part Features | Integral saddle for attaching a cable tie located on the side face of the mount for parallel or perpendicular oriented bundle to the mounting edge |
