| Material Description | ABS () |

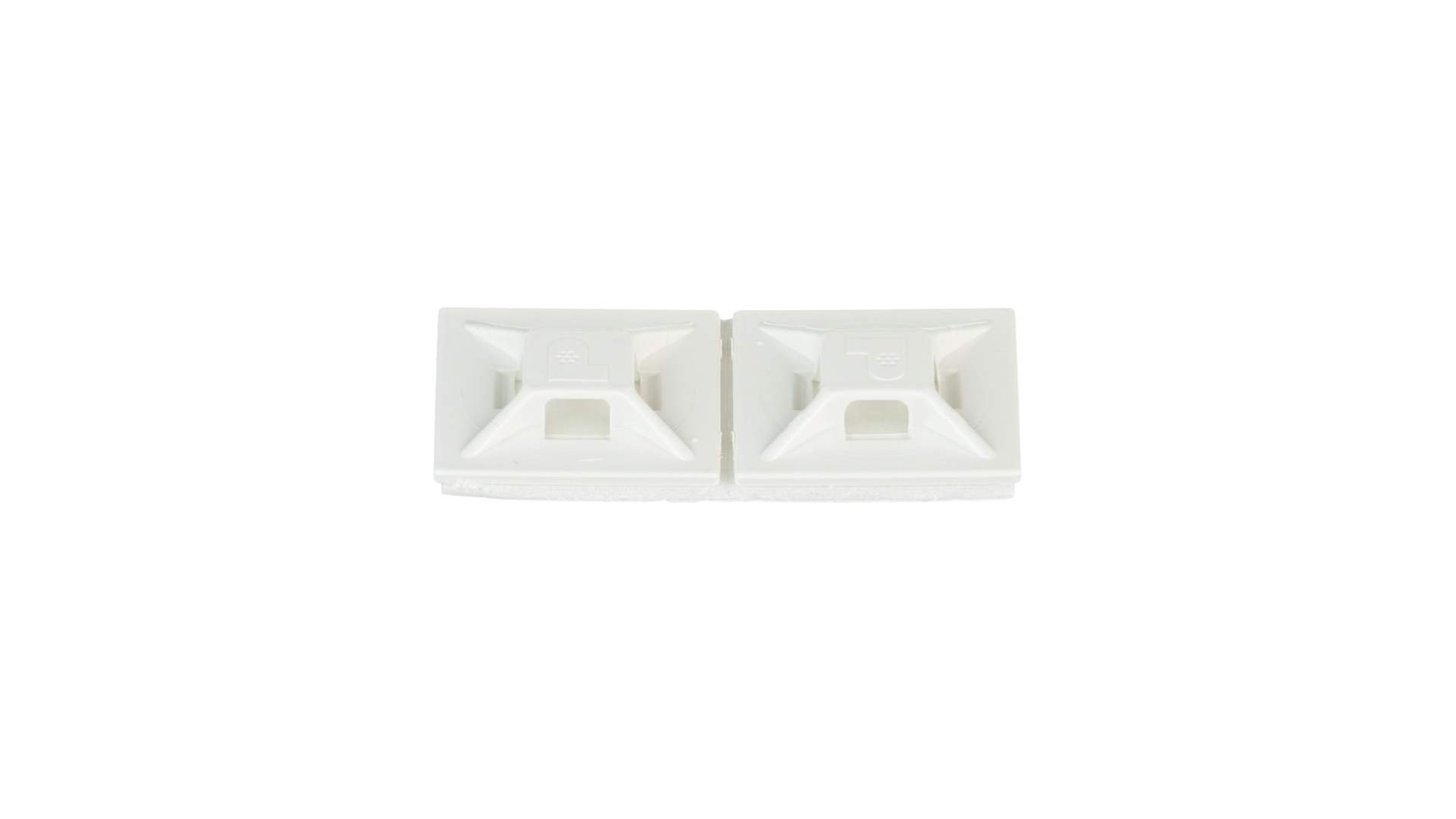

| Product Type | Cable Tie Mount |
| Application | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.1 |
| Overall Height (In.) | 0.18 |
| Overall Height (mm) | 4.6 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.136 |
| Static Load Capacity (lb) | 0.3 |
| For Use With | Miniature, Intermediate Cross-Section Ties |
