| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 1 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 13/32 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.06 |
| Inside Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.11 |
| Maximum Wire Insulation Diameter (mm) | 2.8 |
| Outer Diameter (In.) | 0.07 |
| Outer Diameter (mm) | 1.8 |
| Overall Length (In.) | 0.57 |
| Overall Length (mm) | 14.5 |

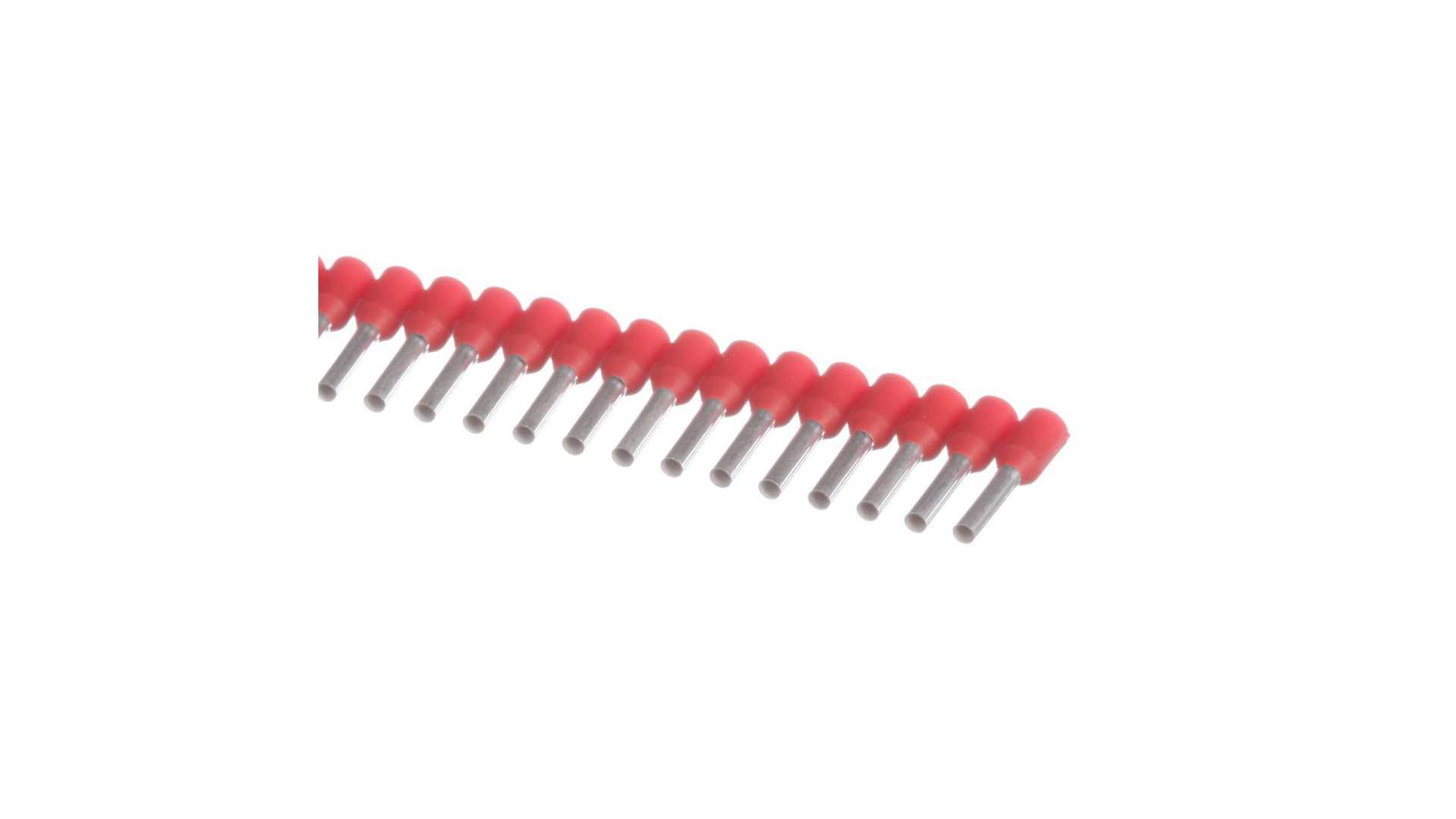

| Product Type | Covered Single Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CP-881, APM-MRSP1516JVD |
| Packaging Type | Reel |
| Base Material | Copper |
| Color Code | Red |
| Sub Brand | Reel Smart™ |
| Part Features | Polypropylene covered housing available in DIN standard colors. Designed specifically for use with the Ferrule Applicator (APM-MRSP1516JVD) for high volume applications. Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations |
