| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 4 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 17/32 |
| Wire Strip Length (mm) | 13.5 |
| Pin Length (In.) | 0.39 |
| Pin Length (mm) | 10 |
| Inside Diameter (In.) | 0.11 |
| Inside Diameter (mm) | 2.9 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.19 |
| Maximum Wire Insulation Diameter (mm) | 4.8 |
| Overall Length (In.) | 0.69 |
| Overall Length (mm) | 17.5 |

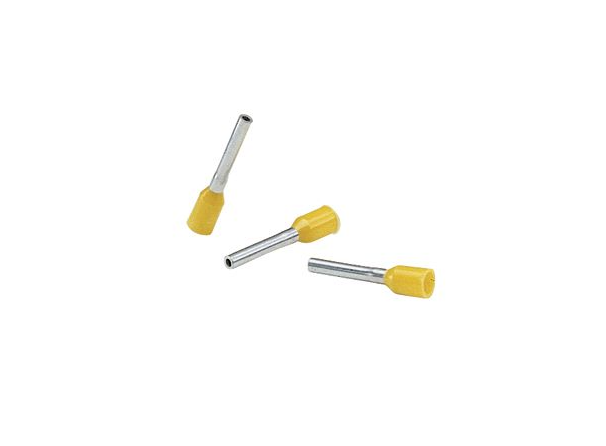

| Product Type | Covered Single Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CP-992, CTFP-40, CTFP-100, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Gray |
| Sub Brand | Pan-Term® |
| Part Features | Polypropylene covered housing conforms to DIN color requirements. Meets DIN, UL and CSA standards for single wire containment. Funnel entry for faster insertion and lower installed cost. Designed with a seamless barrel to contain loose wire strands for superior terminations. Eases insertion of wire into terminal block. Suitable for limited space panel applications. Multiple pin lengths available for a variety of terminal blocks |
