P4-14RHT6-E

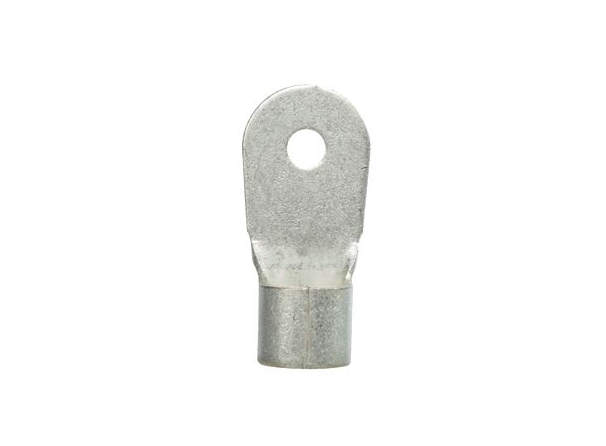

Pan-Term® P4-14RHT6-E Ring Terminal
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | 4 |
| Minimum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Nickel-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 343 |
| Maximum Operating Temperature (°F) | 650 |
| Outer Diameter (In.) | 0.39 |
| Outer Diameter (mm) | 9.9 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| Seam Type | Brazed |
| Sub Brand | Pan-Term® |
| Overall Length (In.) | 1.4 |
| Overall Length (mm) | 35.6 |
| Overall Width (In.) | 0.55 |
| Overall Width (mm) | 14 |
| Tongue Length (In.) | 1.12 |
| Tongue Length (mm) | 28.4 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-2600 (CD-2600-4) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Nickel plated copper for temperatures up to 650°F (343°C) • Internal barrel serrations assure good wire contact and maximum tensile strength |
| UPC | 07498313014 |
| Std. Pkg. Qty. | 20 |
| Std. Pkg. Volume (cf) | 0.0015 |
| Std. Ctn. Qty. | 200 |
| Std. Ctn. Volume (cf) | 0.0153 |
