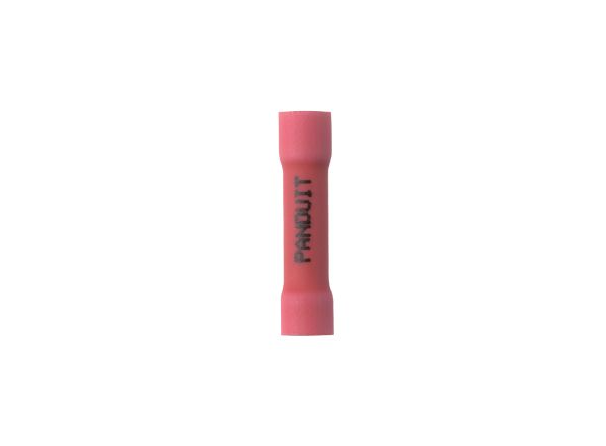

| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18 |
| Copper Code Conductor Size (AWG) | 22-18 |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Overall Width (In.) | 0.17 |
| Overall Width (mm) | 4.3 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Color Code | Red |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Sub Brand | Pan-Term® |
Part Features
| • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Designed to splice two solid or stranded wires together to repair or lengthen wires • Internal wire stop assures proper length of insertion into terminal barrel |
