PNF18-8R-C

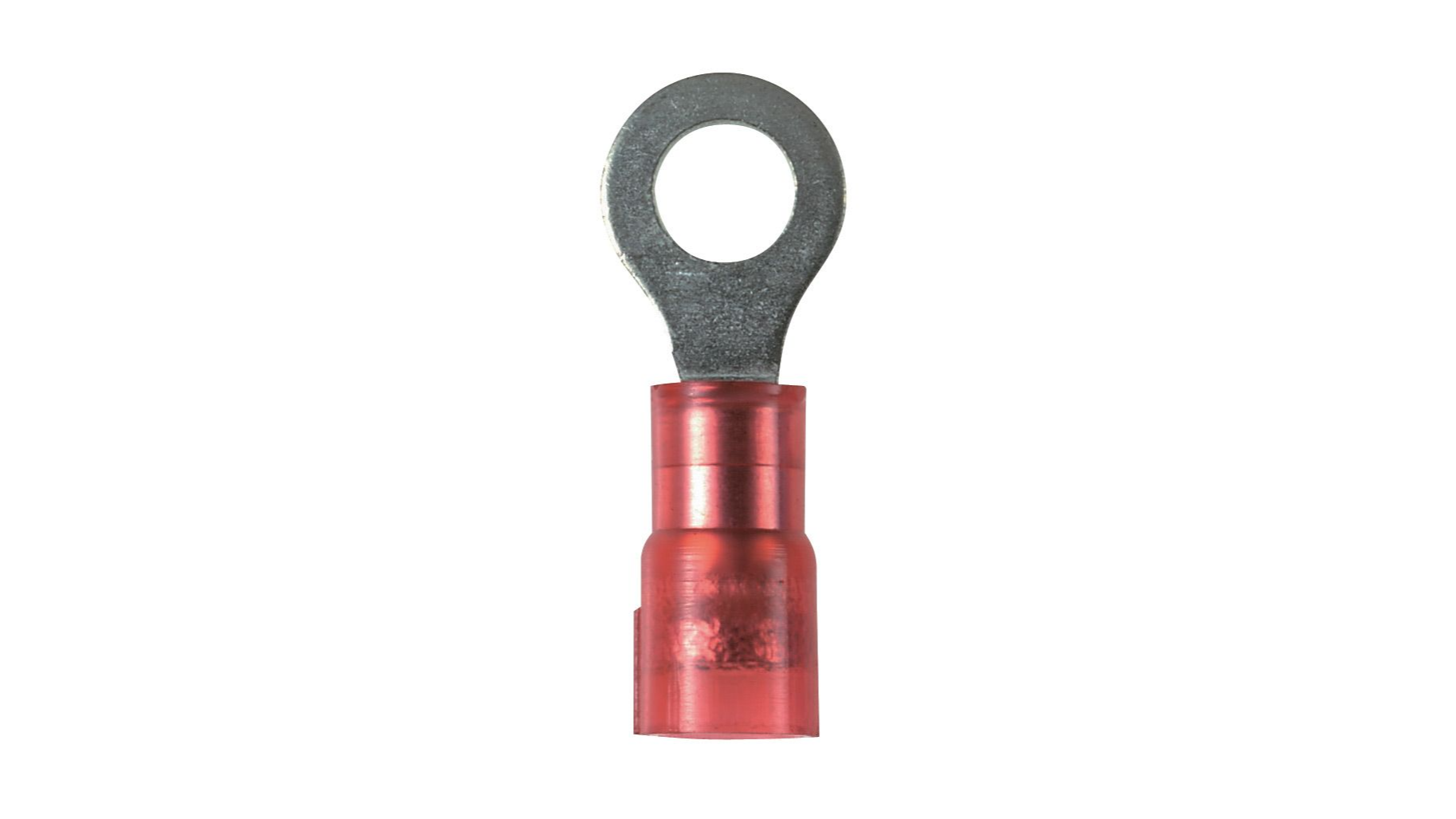

Pan-Term® PNF18-8R-C Ring Terminal
Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-149) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.14 |
| Insulation Diameter (mm) | 3.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Wire Insulation Diameter (mm) | 0.4 |
| Minimum Wire Insulation Diameter (In.) | 0.7 |
| Minimum Wire Insulation Diameter (mm) | 17.8 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Sub Brand | Pan-Term® |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 22.1 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.9 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| UPC | 07498351318 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0074 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0368 |
