LAMA2-14-QY

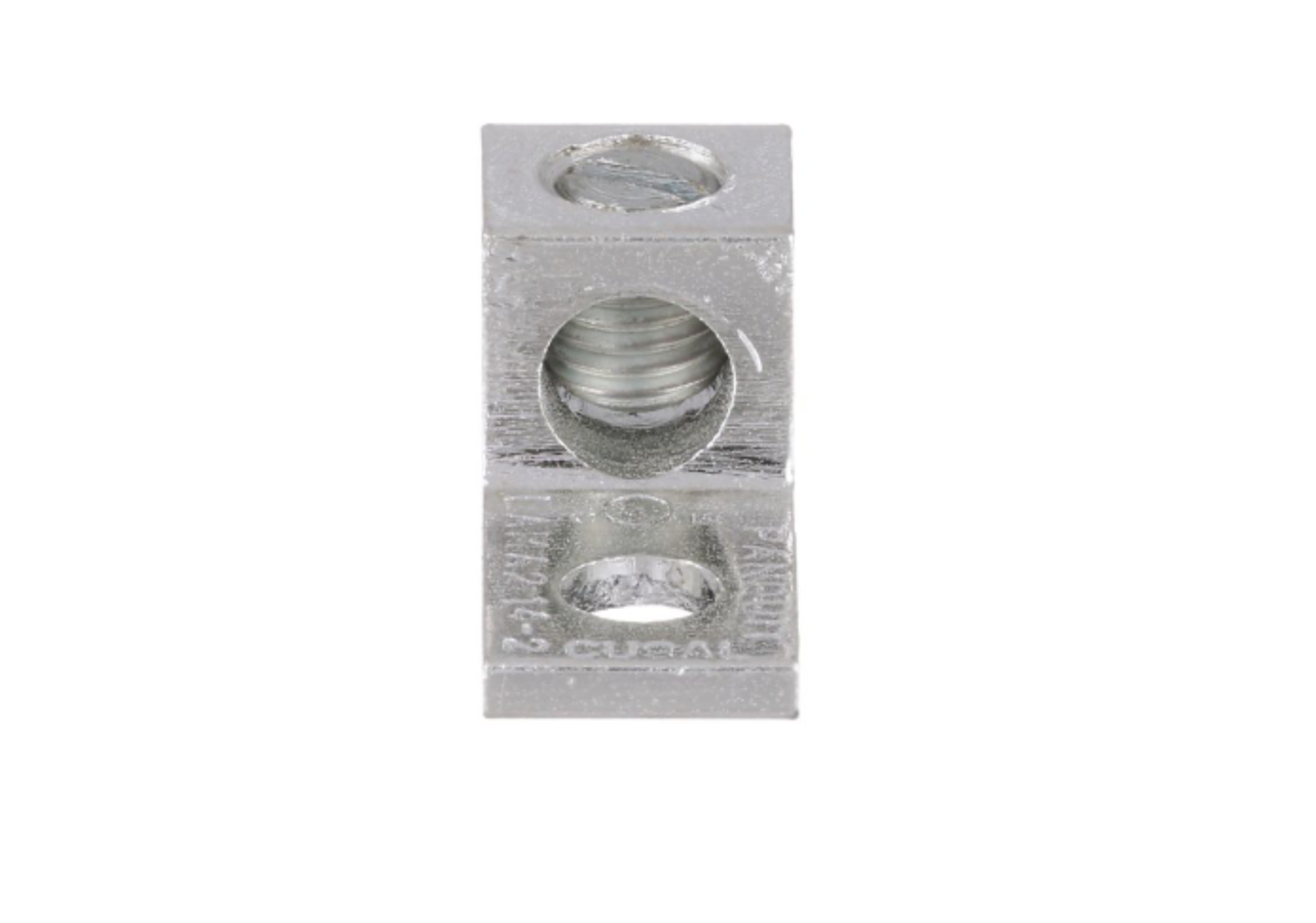

The LAMA2-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
| Application | Stranded Aluminum or Copper Code Conductor |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Maximum Aluminum Conductor Size (AWG) | 2 |
| Maximum Copper Conductor Size (AWG STR) | 2 |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.35 |
| Number of Holes | 1 |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Tongue Length (In.) | 0.7 |
| Tongue Length (mm) | 17.7 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.7 |
| Tongue Width (In.) | 0.5 |
| Tongue Width (mm) | 12.7 |
| Overall Height (In.) | 0.55 |
| Overall Height (mm) | 13.9 |
| Overall Length (In.) | 1.17 |
| Overall Length (mm) | 29.7 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Barrel Type | Single |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.93 |
| Finish/Coating | Tin-Plated |
| Standards Met | cULus Listed for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Slotted Screw | YES |
| Sub Brand | Pan-Lug™ |
| Wire Strip Length (In.) | 0.47 |
| Wire Strip Length (mm) | 11.9 |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
| UPC | 07498359612 |
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0184 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| HK | 0pc |
| Mainlan | 50pc |
