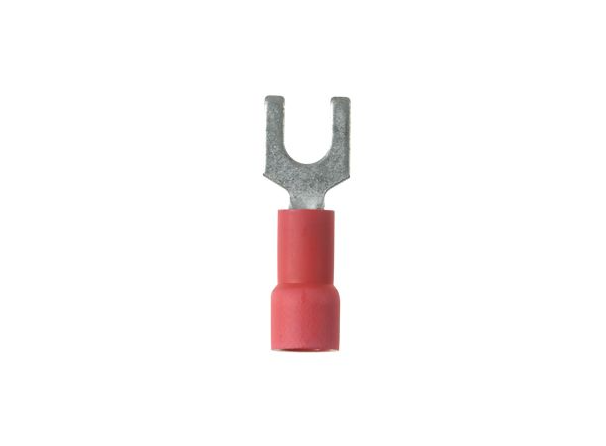

PV18-8FX-CY
ForkTerm,Vyl,22,18AWG,#8Stud,PK100
Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 16 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.9 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.47 |
| Tongue Length (mm) | 11.9 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Sub Brand | Pan-Term® |
| Packaging Type | Loose Piece |
| Product Type | Fork Terminal |
| For Use With | CT-1551, CT-1550 |
| Part Features | Expanded wire entry designed to accommodate wire with a larger insulation thickness Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength |
| UPC | 07498369472 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0100 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0499 |
