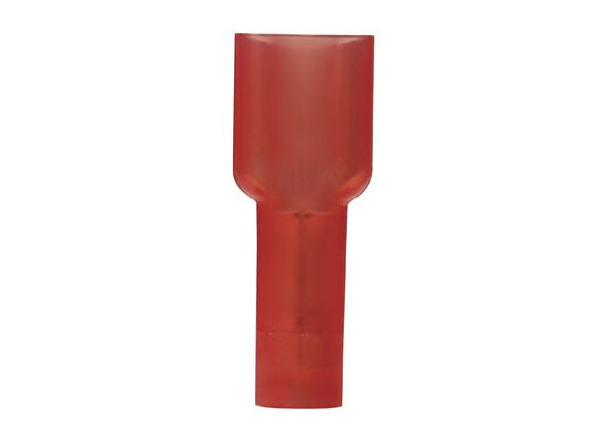

Supra-Grip™ DNG18-250FB-M Loose Piece Disconnect DNG18-250FB-M
Disconnect Type | Female Disconnect-Supra Grip |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.13 |
| Insulation Diameter (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Supra-Grip® |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.2 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1015 |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Flared barrel extension integrated into stamping to provide insulation grip for double crimp requirements • Fully insulated design provides protection from electrical shorts • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher-quality connection • Mates with DNF-FIMB family • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable |
| UPC | 07498351434 |
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.7368 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| HK | 0pc |
| Mainland | 868pc |
