LCAS6-14-L

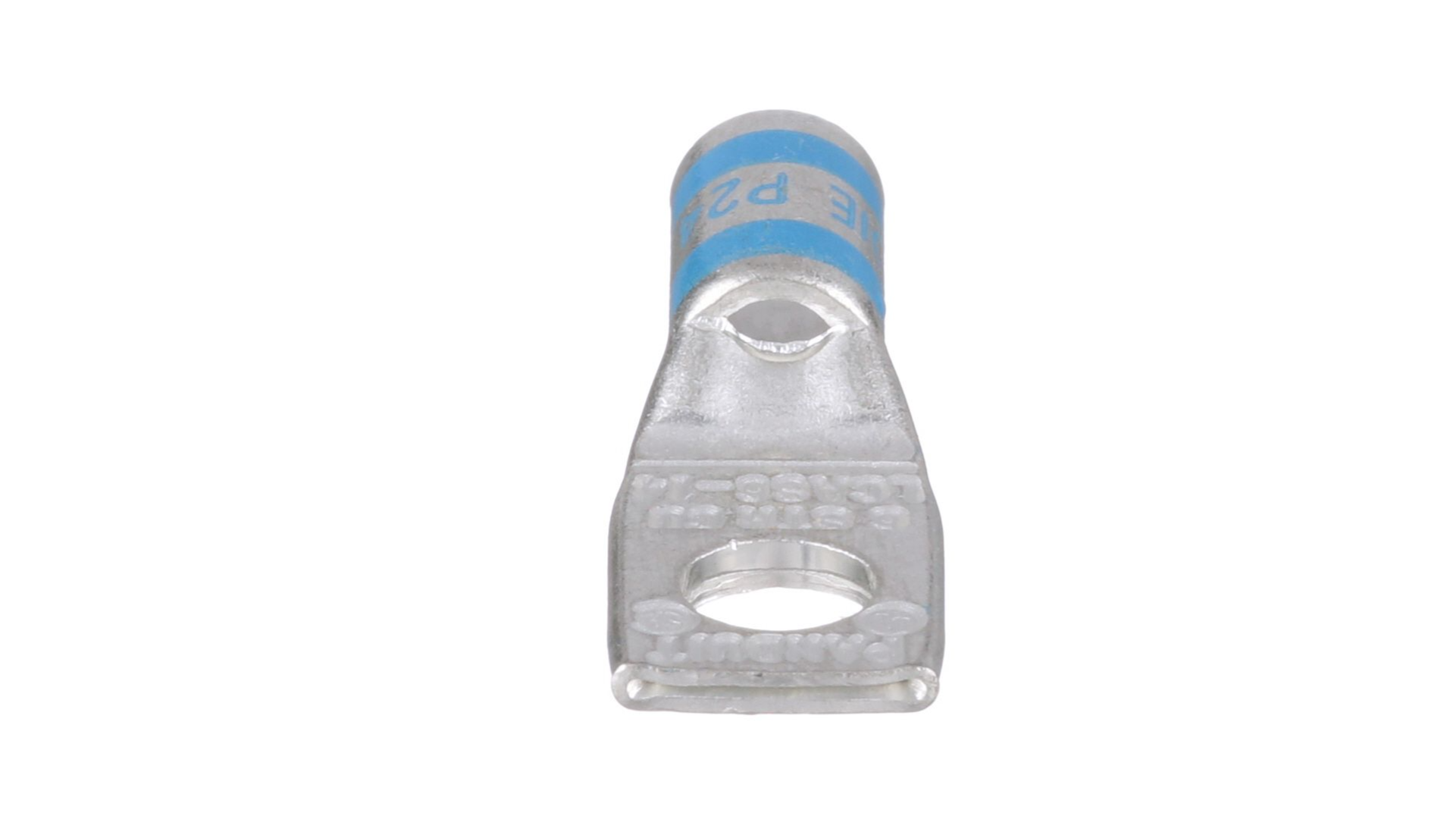

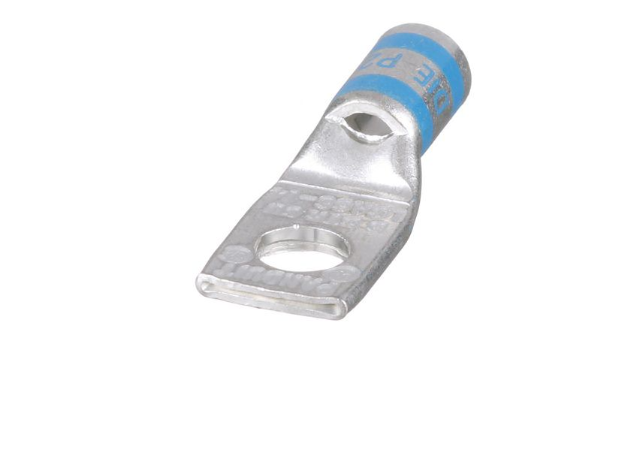

Pan-Lug™ LCAS6-14-L Comp. Lug, 6, Short, Tin Plt Copper, One 1/4" Stud, PK50
Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Short |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.28 |
| Overall Length (mm) | 32.5 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164, Meets NEBS Level 3, ABS approved |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| T & B Die Index Number | 24 |
| Wire Strip Length (In.) | 9/16 |
| Wire Strip Length (mm) | 14.3 |
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Sub Brand | Pan-Lug™ |
| Part Features | Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3. |
| UPC | 07498322522 |
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0184 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
