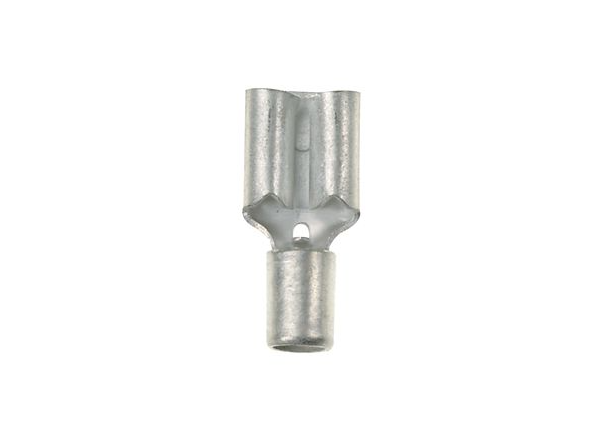

Pan-Term® D14-250-C Loose Piece Disconnect D14-250-C


Disconnect Type

Female Disconnect
Insulation MaterialNon-Insulated
Maximum Copper Conductor Size (AWG)#14
Minimum Copper Conductor Size (AWG)#16
Maximum Wire Size (AWG)14
Minimum Wire Size (AWG)#16
Wire Strip Length (In.)1932-09-01
Wire Strip Length (mm)7.1
Tab Size (In.)0.250 x 0.032
Tab Size (mm)6.3 x 0.8
Standards MetUL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212
Maximum Voltage (V)2000
Base MaterialBrass
Finish/CoatingTin-Plated
Barrel TypeStandard
Maximum Operating Temperature (°C)150
Maximum Operating Temperature (°F)302
Sub BrandPan-Term®
Maximum Metric Conductor Size (mm²)2.5
Minimum Metric Conductor Size (mm²)1.5
Overall Length (In.)0.66
Overall Length (mm)16.8
Overall Width (In.)0.3
Overall Width (mm)7.6
Overall Thickness (In.)0.16
Overall Thickness (mm)0.4
Tongue AngleStraight
Packaging TypeBottle
Product TypeDisconnect
For Use WithCT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Maximum Voltage (kV)2
Part Features

 Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping • Barrel of terminal internally beveled to provide quick and easy wire insertion • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Maximum recommended operating temperature 302°F (150°C) • UL and CSA rated up to 2000 V per UL 310, where applicable


UPC07498382202
Std. Pkg. Qty.100
Std. Pkg. Volume (cf)0.0043
Std. Ctn. Qty.500
Std. Ctn. Volume (cf)0.0214
