DNG18-250FB-M

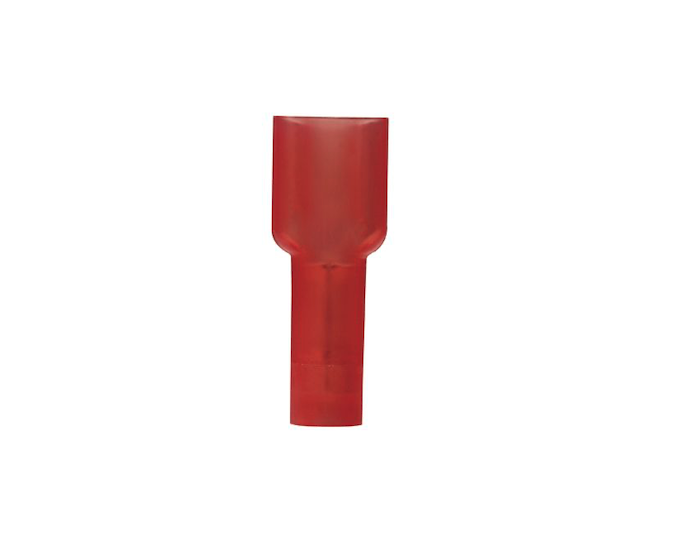

The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in boxes of 1000.
| Disconnect Type | Female Disconnect-Supra Grip |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.13 |
| Insulation Diameter (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Supra-Grip® |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.2 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1015 |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost• Flared barrel extension integrated into stamping to provide insulation grip for double crimp requirements• Fully insulated design provides protection from electrical shorts• Internal barrel serrations assure good wire contact and maximum tensile strength• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher-quality connection• Mates with DNF-FIMB family• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)• UL and CSA rated up to 600 V per UL 310, where applicable |
| UPC | 07498351434 |
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.7368 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
