| Material Description | Nylon 612 (Chemical-Resistant, UV-Resistant, Weather-Resistant) |

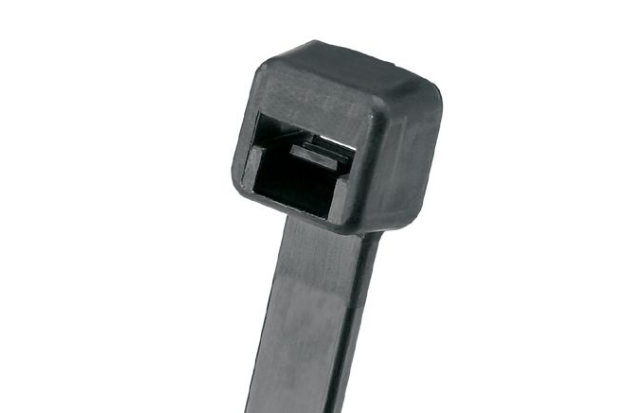

| Product Type | Cable Tie |
| Sub Brand | Pan-Ty® |
| Color | Black |
| Environment | Harsh/Indoor/Outdoor |
| Material | Nylon 612 |
| Resistance Properties | Chemical-Resistant, UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 3.94 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 89 |
| Minimum Loop Tensile Strength (lb) | 20 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File #E56854), Type 2, 21, CE, UKCA, RoHS Compliant, UL94 HB |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
