83027 010 BK

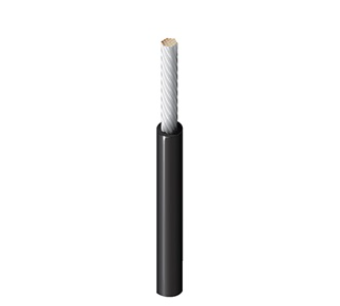

High Temp Plastic Lead Wire, 20AWG (19x32) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 20 AWG | 19x32 | SC - Silvered Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PTFE - Polytetrafluoroethylene | 0.015 in (0.38 mm) | 0.068 in (1.7 mm) |
Overall Cable Diameter (Nominal) | 0.068 in (1.7 mm) |
|---|
| HK | 0m |
| Mainland | 305m |
