83005 010 BK

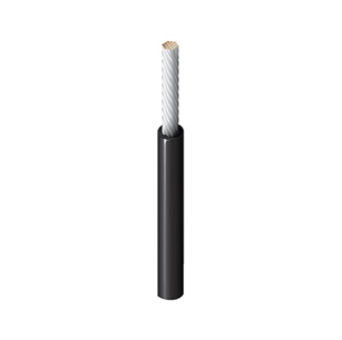

High Temp Plastic Lead Wire, 22AWG (7x30) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 22 AWG | 7x30 | SC - Silvered Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PTFE - Polytetrafluoroethylene | 0.01 in (0.25 mm) | 0.050 in (1.3 mm) |
Overall Cable Diameter (Nominal) | 0.05 in (1.3 mm) |
|---|
| HK | 0m |
| Mainland | 610m |
