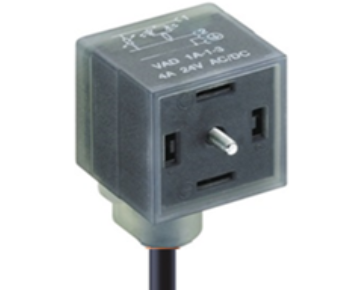

Single-Ended Female Cordset, Contacts: 2+2PE, with Suppressor Diode (TVS) and Yellow LED, 24 V | 4 A, IP67; Cable: PUR Black, IEC, 3x0.50mm² (20AWG)
Availability | Not recommended for new designs |
|---|
Product Family | Valve Connectors |
|---|---|
Product Sub Family | VAD |
Connector Type | Cordset, single ended |
Type of Contact / Gender | Female |
Connector Design | Angled |
Number of Pins | 2+2PE |
Coding | A |
Shielding | Unshielded |
Attachment Type | Central Screw |
Rated Voltage | 24 V |
Rated Impulse Voltage | 4.0 kV |
Operating Voltage | 24 V AC/DC |
Rated Current* | 4 A |
Contact Resistance | ≤ 5 mOhm |
Insulation Resistance | ˃ 10^9 Ohm |
Mating Cycles | max. 50 |
Ambient Temperature (Operation)* | -25°C to +80°C |
Protection Degree / IP Rating** | IP65, IP67 |
Design Standard | DIN EN 175301-803-A |
Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
