LCAN2/0-38-x

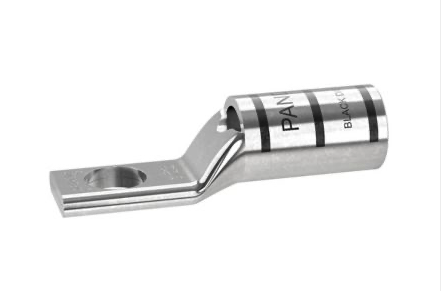

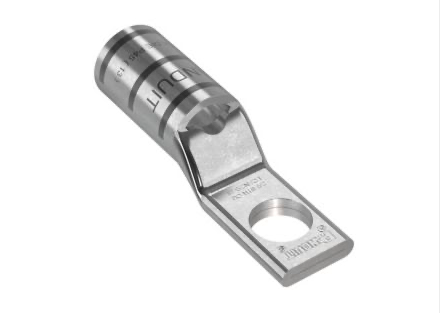

The LCAN2/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
| Inside Diameter (In.) | 0.45 |
| Inside Diameter (mm) | 11.43 |
| Outer Diameter (In.) | 0.58 |
| Outer Diameter (mm) | 14.73 |
| Product Type | Compression Lug |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2/0 |
| Sub Brand | Pan-Lug™ |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.58 |
| Tongue Width (mm) | 13.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.15 |
| Tongue Thickness (mm) | 3.8 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 55.1 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52165 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| T & B Die Index Number | 13 |
| Wire Strip Length (In.) | 1-1/16 |
| Wire Strip Length (mm) | 26.9 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
| UPC | 07498344478 |
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0312 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
