LCD10-14A-L

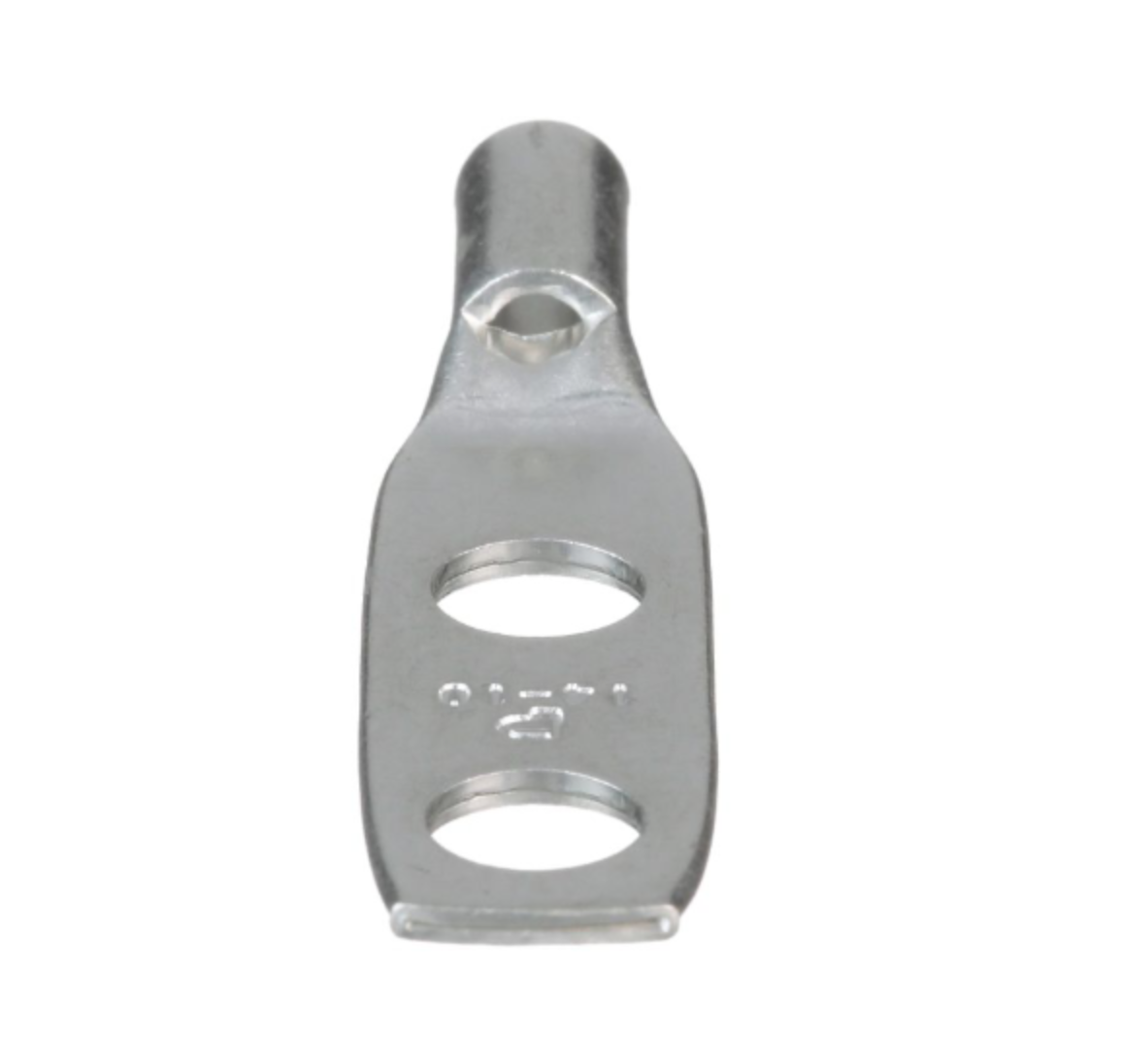

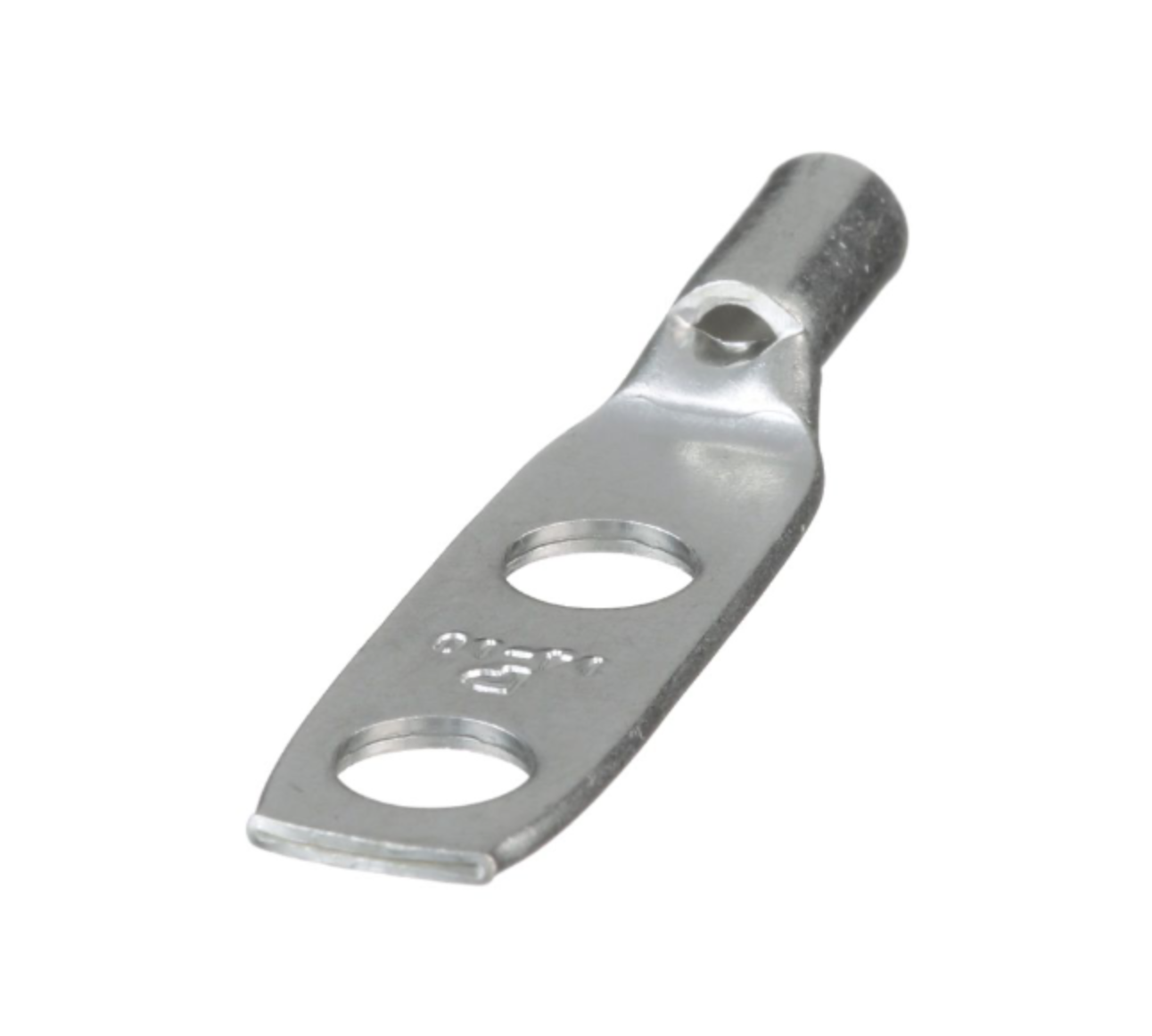

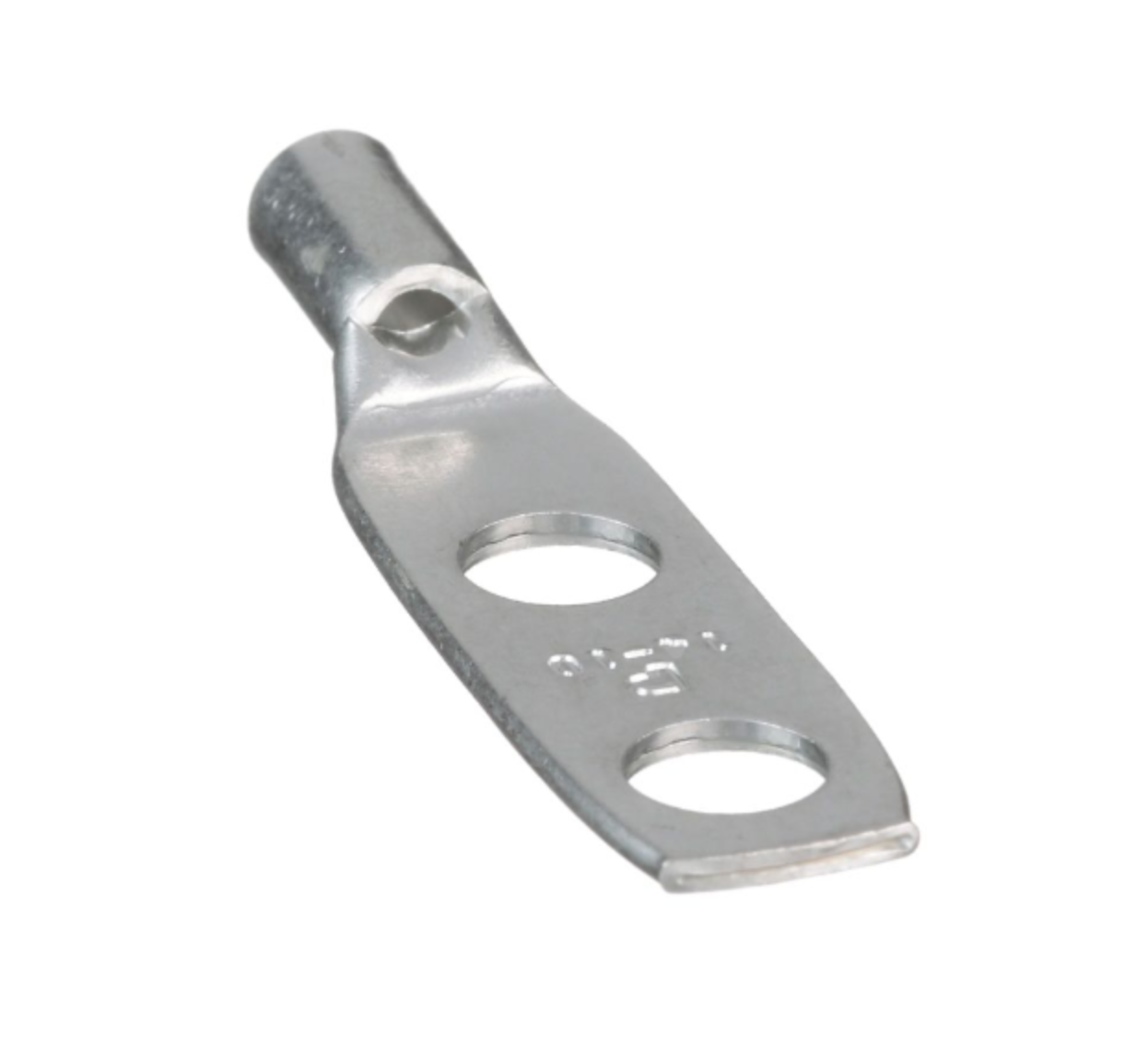

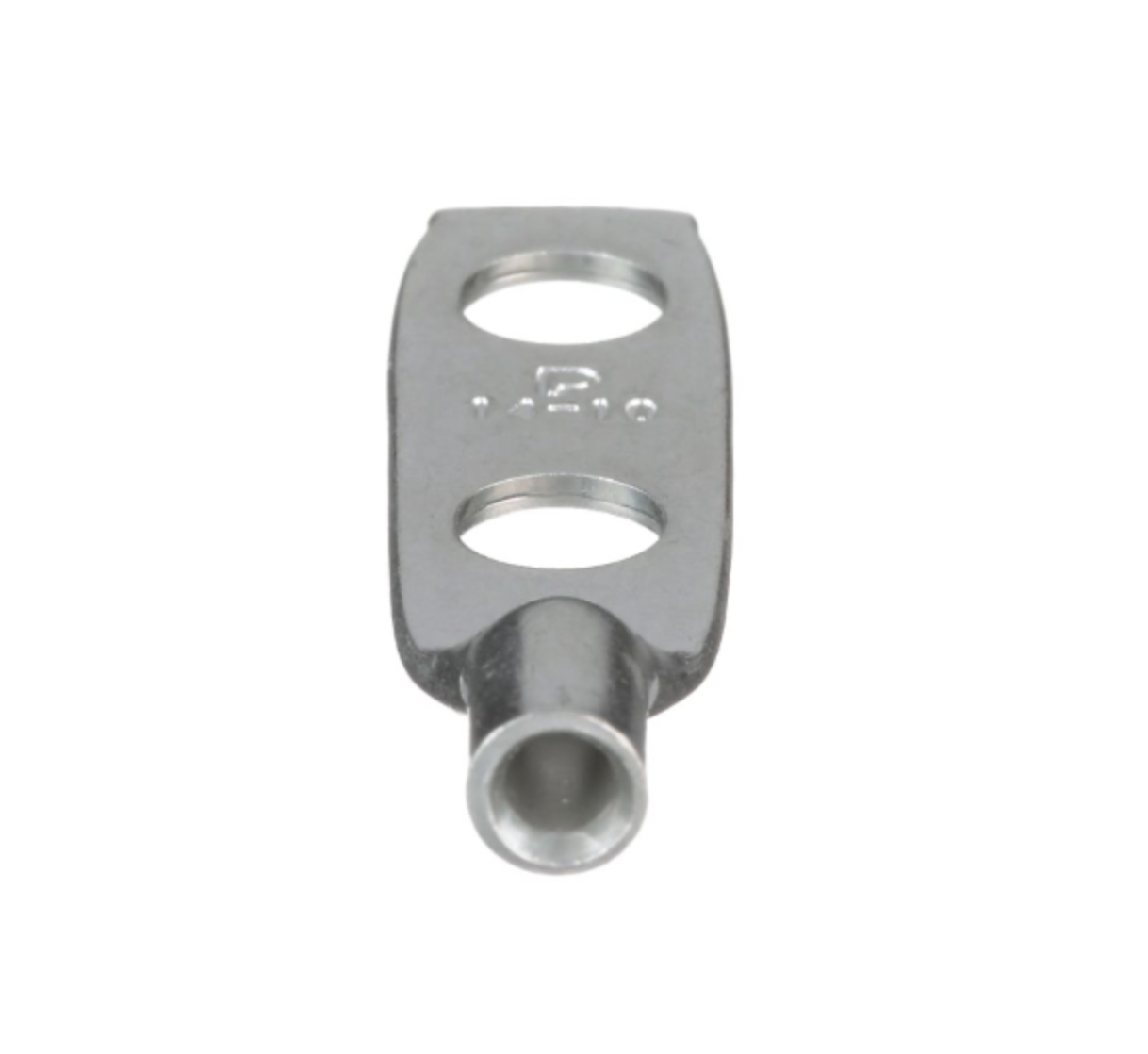

The LCD10-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.58 |
| Product Type | Compression Lug |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 10 |
| Sub Brand | Pan-Lug™ |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.78 |
| Overall Length (mm) | 45.2 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
| UPC | 07498397234 |
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0105 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
