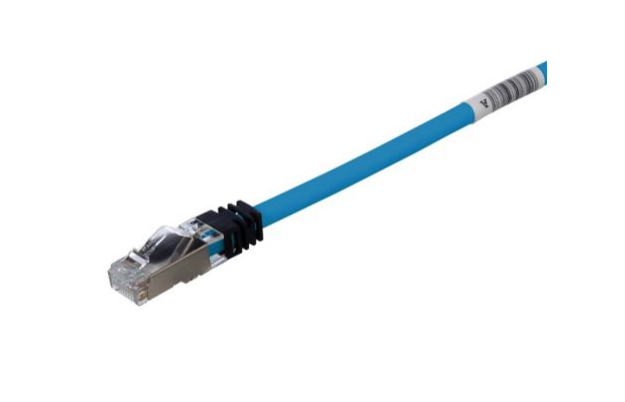

| Product Type | Shielded Patch Cord |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.3 |
| Sub Brand | Pan-Net® |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 10 |
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
| Color | Blue |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
| RapidID™ Enabled | Yes |
