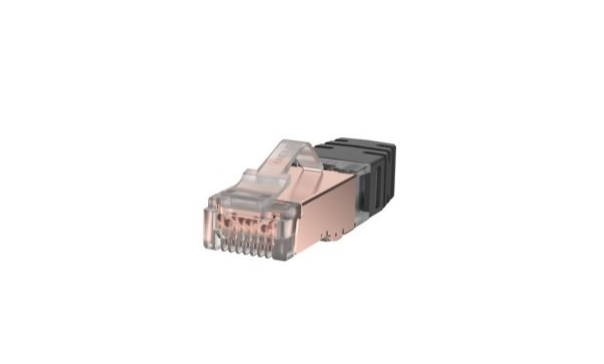

| Product Type | Modular Plug |
| Performance Level | Category 6A |
| Connector Type | Modular Plug |
| Body Material | Polycarbonate |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.1 |
| Overall Depth (In.) | 1.6 |
| Overall Depth (mm) | 40.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-23 |
| Color | Clear |
| Standards Met | Exceeds ANSI/TIA Category 6A and ISO Class EA performance requirements when properly terminated to Panduit Category 6A F/UTP copper cable, Compatible with Panduit® TX6A™ F/UTP Horizontal Copper Cable (PFL6X04**, PFP6X04** and PFR6X04**) ‡ , Meets ANSI/TIA-1096-A (formerly FCC Part 68) IEC compliance: IEC-60603-7, Supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applications for up to 100 W, RoHS Compliant |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | TX6A™ |
