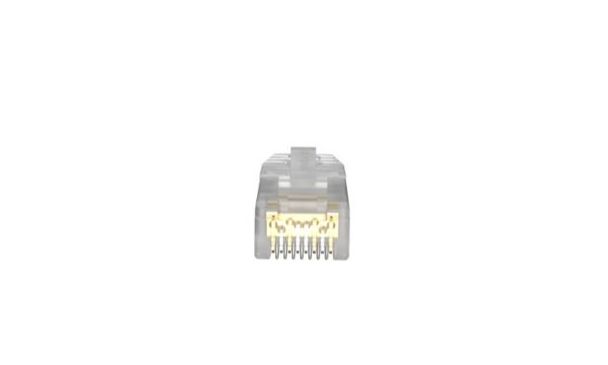

| Product Type | Modular Plug |
| Performance Level | Category 6 |
| Connector Type | Modular Plug |
| Body Material | Plastic |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.8 |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.1 |
| Overall Depth (In.) | 1.6 |
| Overall Depth (mm) | 40.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24-23 |
| Color | Clear |
| Standards Met | Exceeds ANSI/TIA Category 6 and ISO Class E performance requirements when properly terminated to Panduit Category 6 UTP copper cable, Meets ANSI/TIA-1096-A, IEC 60603-7, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant |
| Flammability Rating | UL94V-0 |
| Sub Brand | TX6™ |
