| Note | Available in Asia Pacific, Latin America and Middle East/Africa |
| Environment | Indoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | CM |
| Resistance Properties | Flame-Retardant |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.225 |
| Nominal Cable Outside Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | Pan-Net® |
| Maximum Installation Tension (N) | 110 |
| Maximum Installation Tension (lb) | 25 |
| Bend Radius (In.) | 0.9 |
| Bend Radius (mm) | 22 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | High-Density Polyethylene |
| Insulation Diameter (In.) | 0.039 |
| Insulation Diameter (mm) | 0.99 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ISO 11801 Class E and ANSI/TIA568.2-D Category 6 with Channel Headroom Guarantee, IEC 61156-5, UL 1685, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications; RoHS Compliant. |
| Color | Blue |
| Packaging Type | Carton |

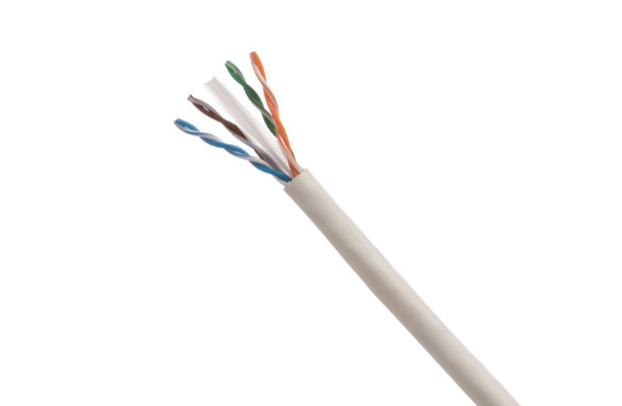

| Product Type | Copper Cable |
