| Note | TP style termination |

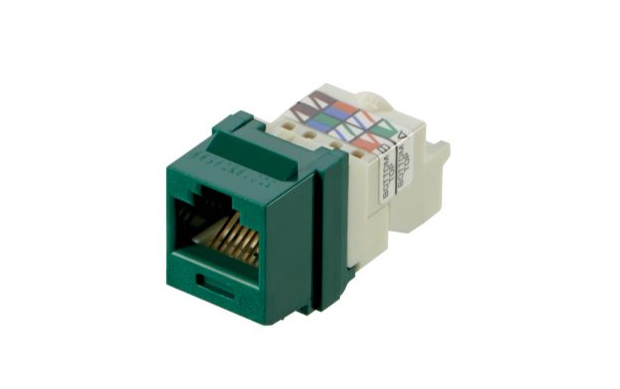

| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey® |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Green |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.43 |
| Overall Length (mm) | 36.3 |
| Overall Width (In.) | 0.58 |
| Overall Width (mm) | 14.7 |
| Overall Depth (In.) | 1.43 |
| Overall Depth (mm) | 36.3 |
| Overall Height (In.) | 0.76 |
| Overall Height (mm) | 19.3 |
