DR10-250-D

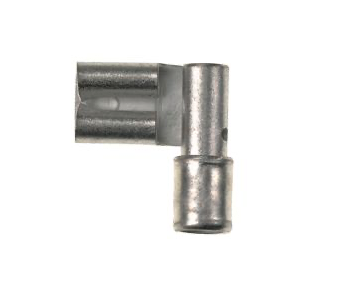

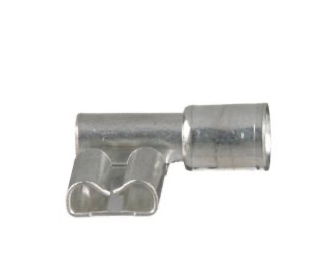

The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.61" (15.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 500.
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Depth (In.) | 0.57 |
| Overall Depth (mm) | 14.5 |
| Overall Length (In.) | 0.61 |
| Overall Length (mm) | 15.5 |
| Overall Thickness (In.) | 0.18 |
| Overall Thickness (mm) | 0.5 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.6 |
| Tongue Angle | Right Angle |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-100, CT-1570, CT-1701, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Right angle design for use in limited space applications • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping • Barrel of terminal internally beveled to provide quick and easy wire insertion • Internal barrel serrations assure good wire contact and maximum tensile strength • Maximum recommended operating temperature 302°F (150°C) • UL and CSA rated up to 2000 V per UL 310, where applicable |
| UPC | 07498382756 |
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.5969 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
| HK | 0pc |
| Mainland | 500pc |
