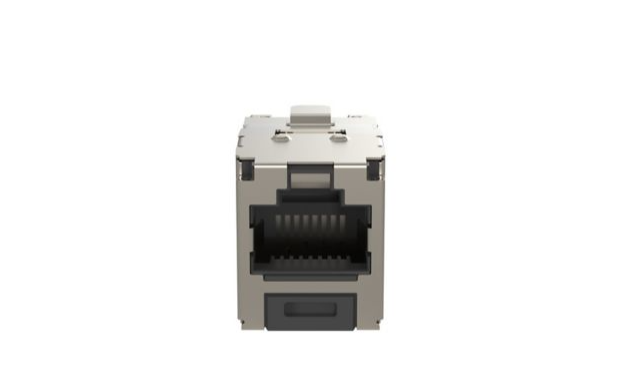

| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Black |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
