| Material Description | Nylon 6.6 () |

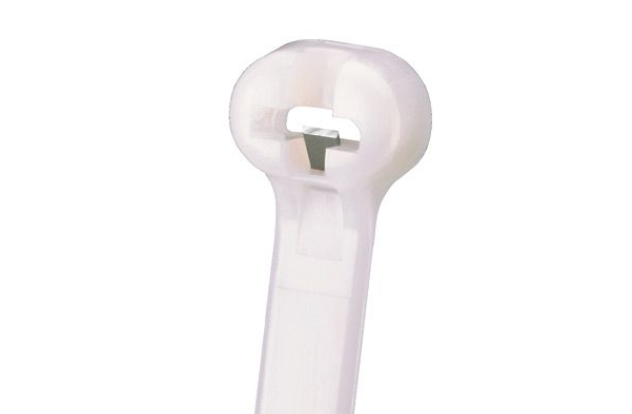

| Product Type | Cable Tie |
| Sub Brand | Dome-Top® |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.1 |
| Overall Length (mm) | 155 |
| Body Width (In.) | 0.142 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.041 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Military Cross Reference Number | MS3367-5-9 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
