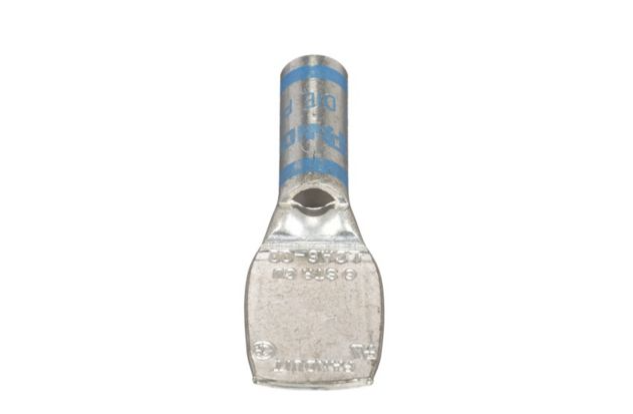

| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 0 |
| Stud Hole Size (mm) | 0 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Standards Met | CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| T & B Die Index Number | 24 |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Sub Brand | Pan-Lug™ |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window. |
