| Material Description | Nylon 6.6 () |

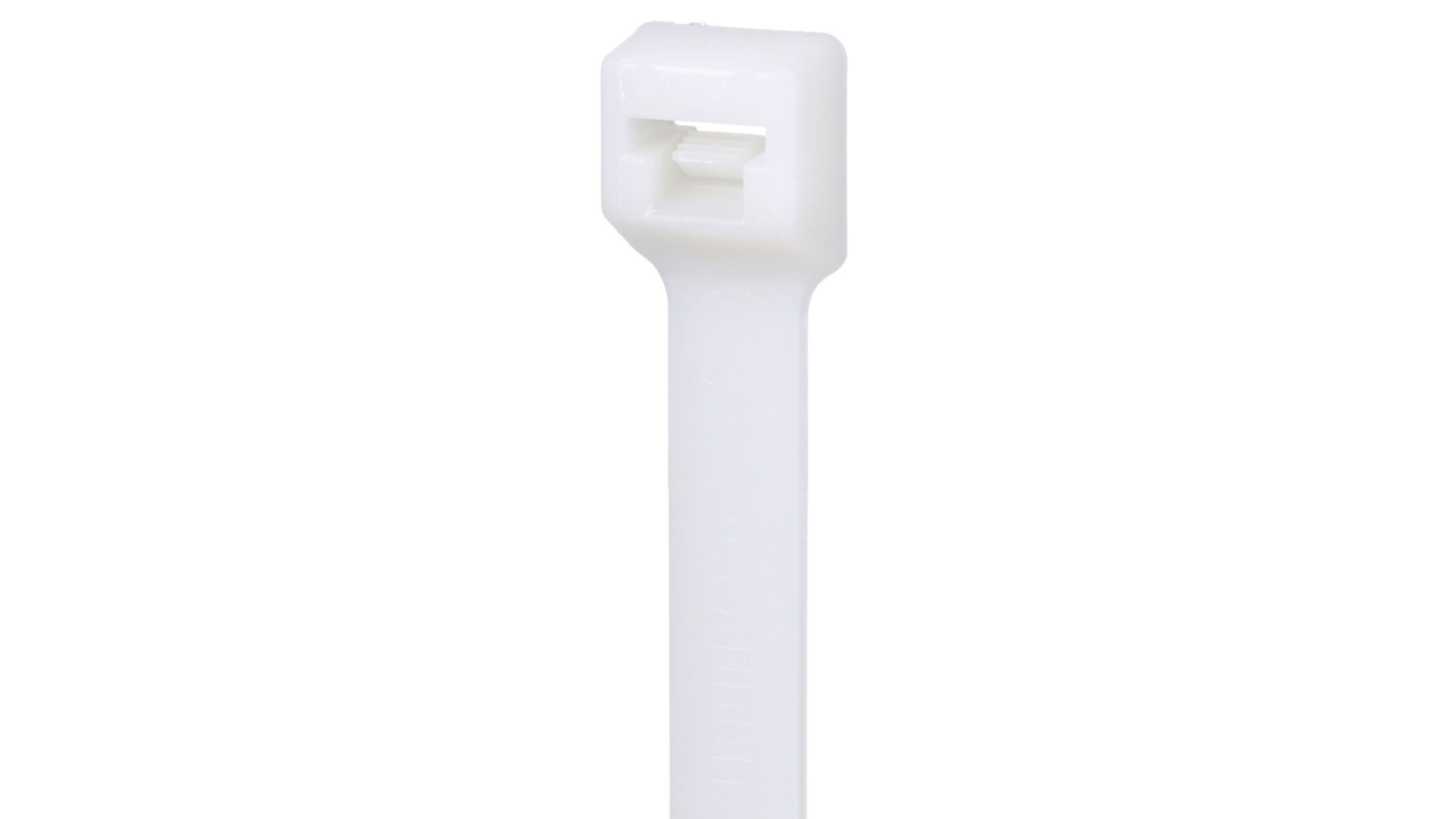

| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 2.8 |
| Overall Length (mm) | 71 |
| Body Width (In.) | 0.07 |
| Body Width (mm) | 1.8 |
| Body Thickness (In.) | 0.03 |
| Body Thickness (mm) | 0.8 |
| Maximum Bundle Diameter (In.) | 0.6 |
| Maximum Bundle Diameter (mm) | 15 |
| Minimum Bundle Diameter (In.) | 0.01 |
| Minimum Bundle Diameter (mm) | 0.3 |
| Minimum Loop Tensile Strength (N) | 36 |
| Minimum Loop Tensile Strength (lb) | 8 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| For Use With | GTS-E, PTS |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
