MCMS30-P-C

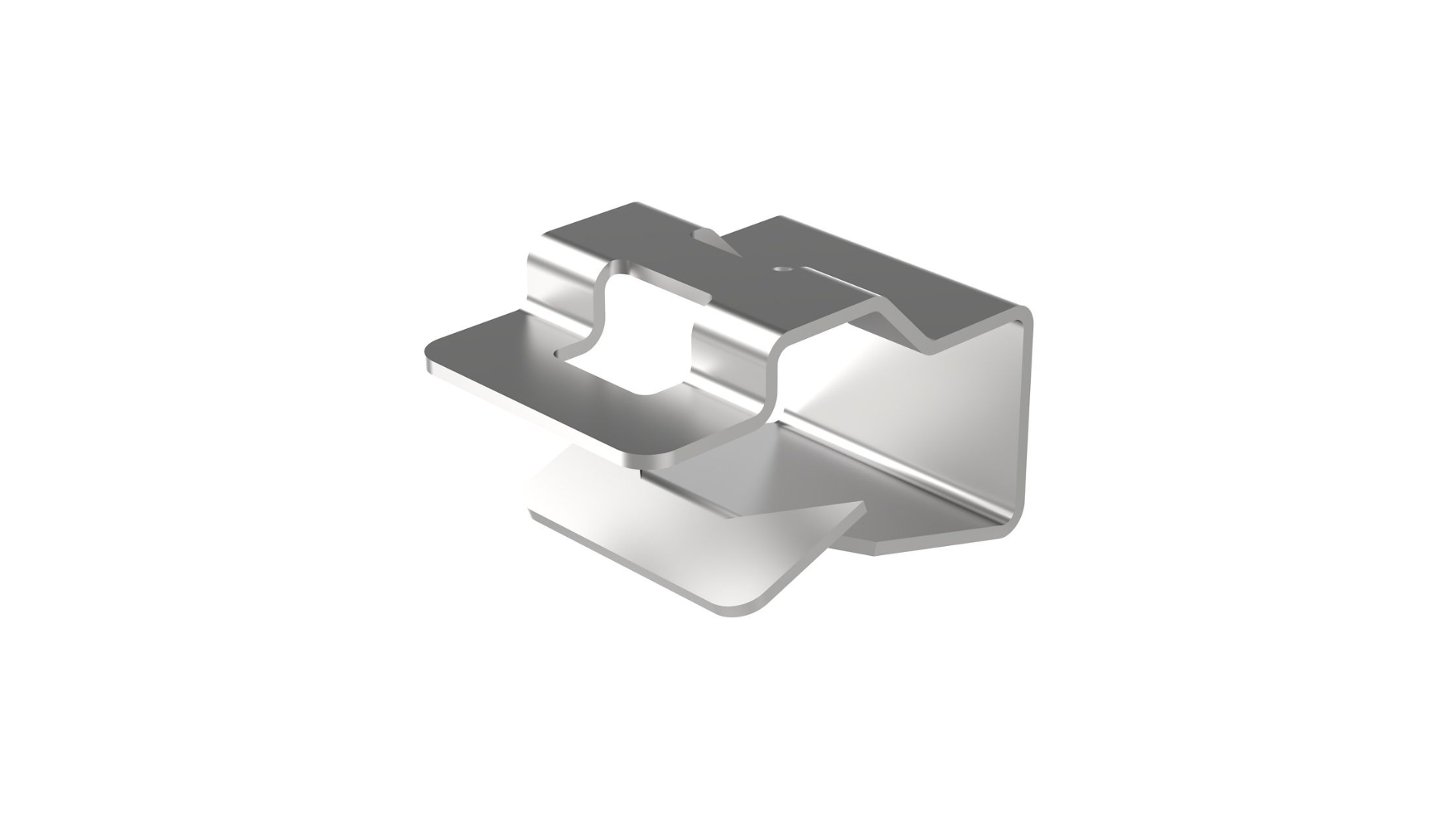

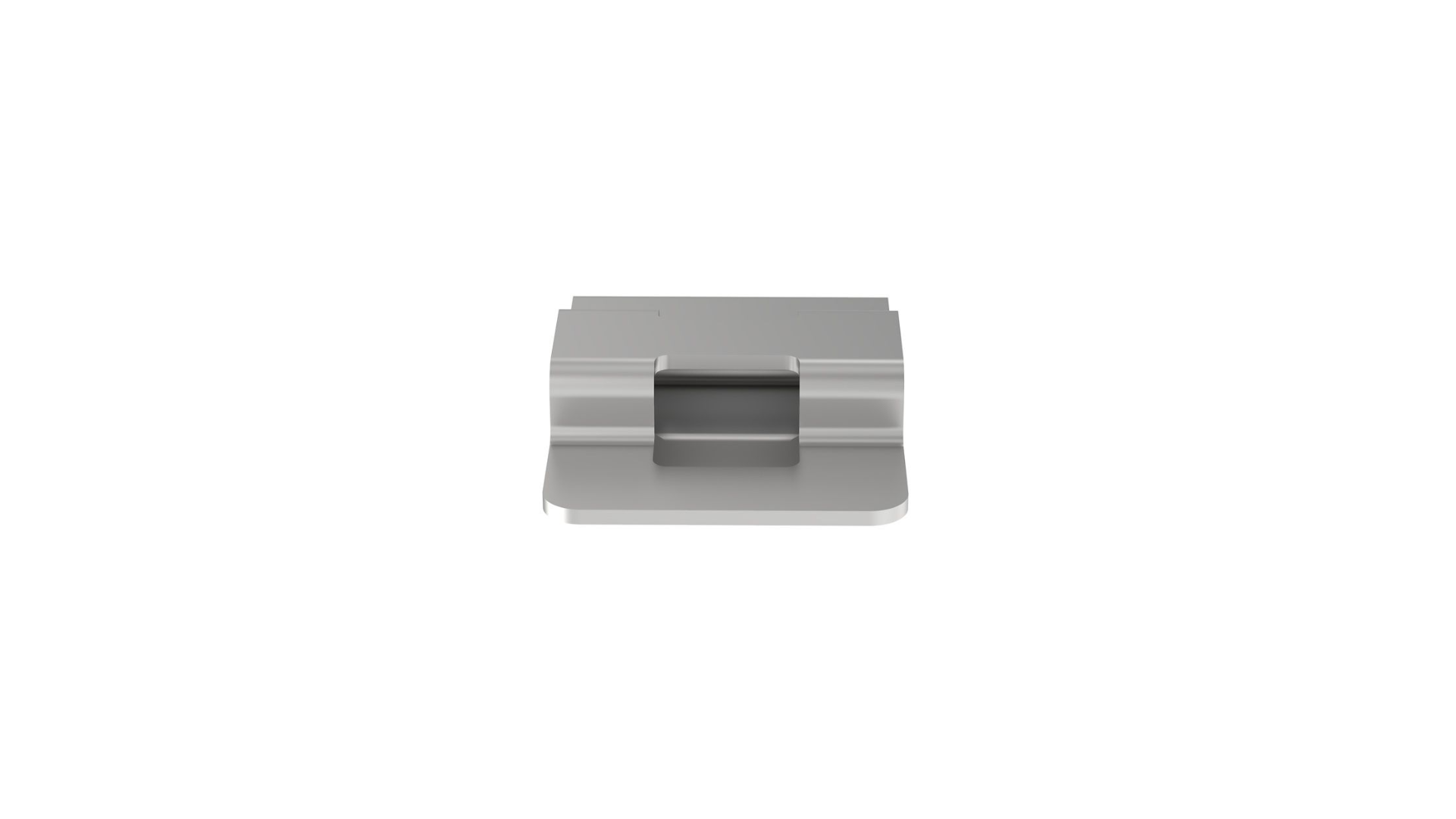

MCMS30-P-C Clip-on Mount, Indoor use, Zinc Plated Steel, .22-.27", PK100
| Product Type | Cable Tie Mount |
| Application | (1) Clips on Sheet Metal Edges for Fast Mounting of Harness With Cable Ties(2) Allows Cable Tie Entry From All Four Sides for Easy Harness Orientation |
| Color | Natural |
| Environment | Indoor |
| Material | Steel/Zinc |
| Maximum Compatible Panel Thickness (In.) | 0.27 |
| Maximum Compatible Panel Thickness (mm) | 6.8 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Mount Method | Edge Clip |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 0.56 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.31 |
| Overall Height (mm) | 7.9 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498385526 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0266 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.1329 |
| HK | 0pc |
| Mainland | 21pc |
