| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |

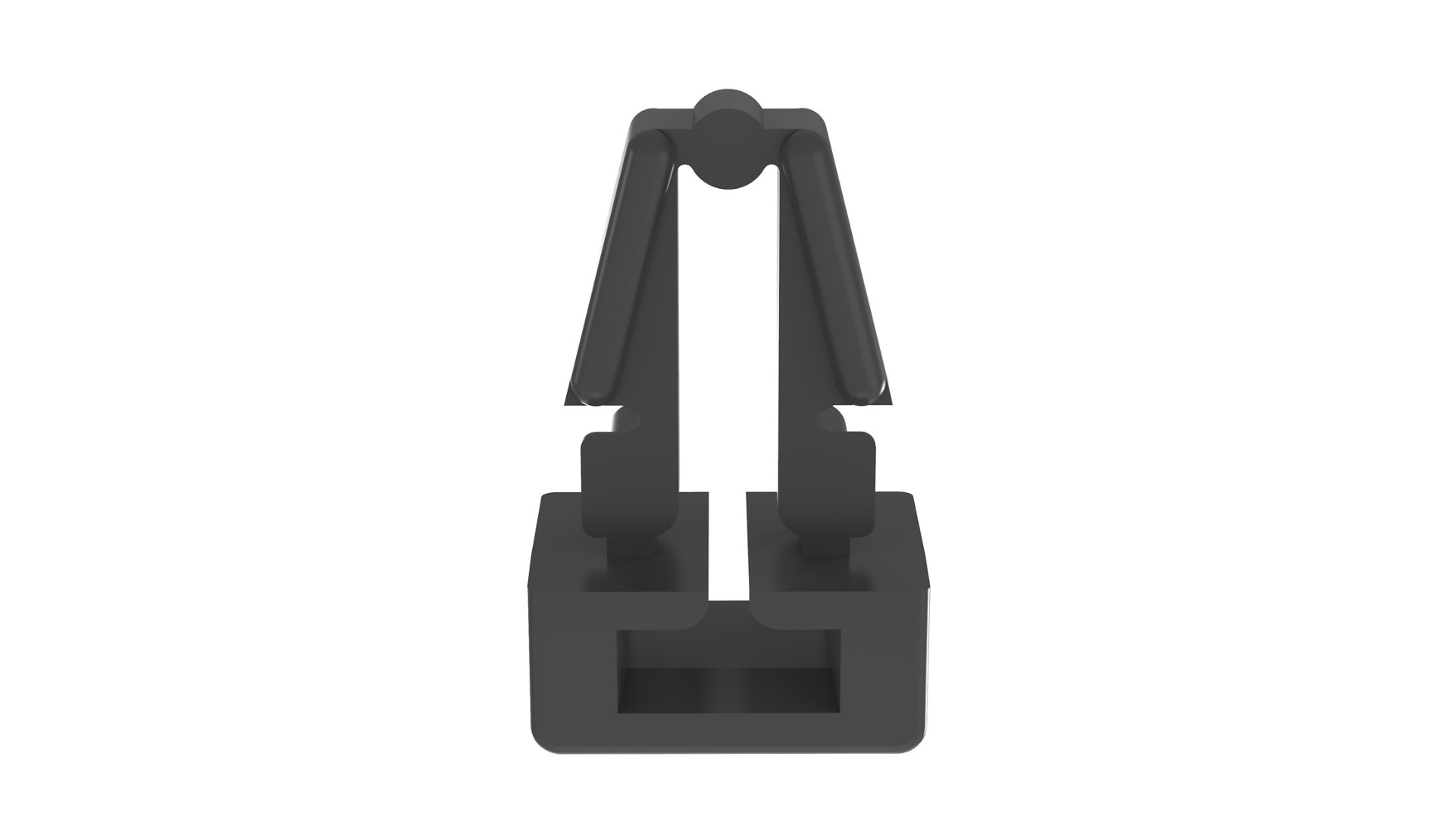

| Product Type | Cable Tie Mount |
| Application | Push Mounts for use where Only One Side of the Panel is Accessible |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.3 |
| Overall Length (mm) | 7.6 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant, UL Recognized: E56854, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
