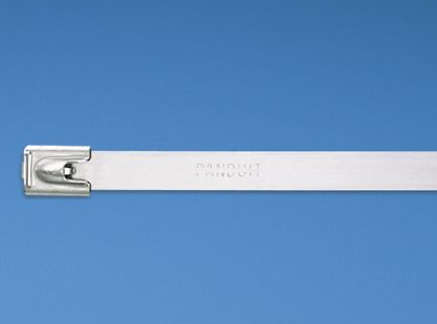

| Product Type | Cable Tie |
| Sub Brand | Pan-Steel® |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 201 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 2000 |
| Minimum Loop Tensile Strength (lb) | 450 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG |
| Military Cross Reference Number | M23190/3-5 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | General |
