R150X150V1T-FREE

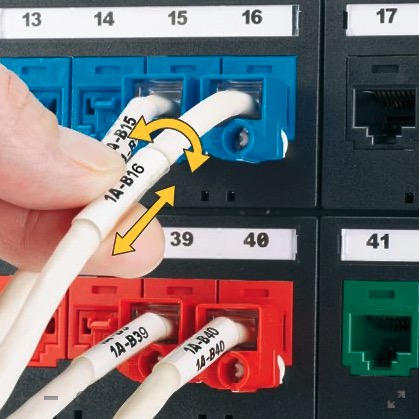

The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.5" wide and 1.50" long (38.1 x 38.1 mm). It has a 3.0" (76.2 mm) core and supports 10-6 AWG wire /cable, Cat 5e/6/6e UTP and Cat 5e FTP cable. It has
| Note | For use with TDP printers |
| Product Type | Turn-Tell Label |
| Sub Brand | Turn-Tell® |
| Cable Type | 10-6 AWG/Cat. 5e/6/6A UTP/Cat. 5e FTP |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 10-6 AWG/Cat. 5e/6/6A UTP/Cat. 5e FTP |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7.1 |
| Minimum Cable Diameter (In.) | 0.22 |
| Minimum Cable Diameter (mm) | 5.6 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 1000 |
| Label Application | Cable & Wire Marking |
| UPC | 07498391923 |
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.6253 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
